Lead glass is used to manufacture optical glass, electric vacuum glass, low temperature sealing glass, radiation proof glass, lead crystal glass, flint optical glass, low melting glass, delay line glass, high refraction bead glass and art ware glass, etc.
LEAD GLASS-ZF3
Exported to USA, Southeast Asian, Europe and so on. It Used in CT scan, Nuclear medicine, observing window and X-RAY in medicine.
LEAD GLASS-ZF6/ZF7
It is used extensively in nuclear power station, nuclear industry, etc.
1.Foam pad + wooden board
2.It is standard export packaging.
Standard seaworthy export packing,wooden pallets with plastics protection.
Normally we have four layers of packing: wooden pallets hardboard kraft paper and plastic.Pay attention to the matters needing attention when installing lead glass: 1: Lead glass is a brittle material with a large specific gravity. Be sure to handle it gently when disposing.
2: During the installation, the surroundings of the glass must be mismatched with the protective materials on the wall surface, and lead glass in the copper mountain area to prevent leakage of radiation at the joint.
3: Due to the application of lead glass, which is rich in lead and barium, lead glass is susceptible to acid and alkali pollution, and is not easy to install or store in acid gas or humid environments.
4: The surface of lead glass is easier to scratch than ordinary glass, so it must be handled with care.
| Model | Density (g/m3) | Lead containe | Lead equivalent |
| ZF2 | 4.12 | 56% | 0.22mmpb/mm |
| ZF3 | 4.46 | 61% | 0.24mmpb/mm |
| ZF6 | 4.77 | 67% | 0.28mmpb/mm |
| ZF7 | 5.2 | 71% | 0.32mmpb/mm |
| Materials | GB:Pb1, Pb2, Pb3, PbSb0.5, PbSb2, PbSb4, PbSb6, PbSb8,PbSb3.5, PbSn4.5-2.5, PbSn2-2, PbSn6.5ASTM: UNSL50006, UNSL50021, UNSL50049,UNSL51121, UNSL53585, UNSL53565, UNSL53346, UNSL53620, YT155A, Y10AОСТ：C0，C1，C2，C3，ETC |
| Component type | RmOn-PbO-SiO2(B2O3) |
| Pb Equivalent | 0.125mmPb,0.175mmPb,0.25mmPb,0.35mmPb,0.5mmPb,0.75mmPb,1.0mmPb,2.0mmPb. |

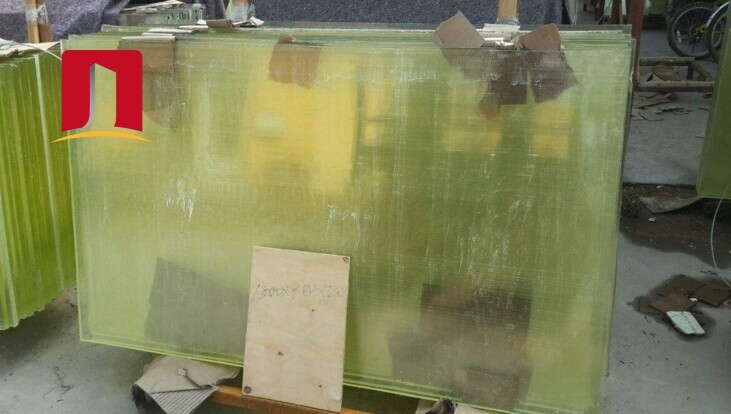

X-RAY shielding lead glass for the observing window series
Dimension: 3000*1200mm is the current largest X-ray protective observing window in China, which can provide more effective service for the radiation medical for the medical staff and expand the range of observation so as to improve the diagnosis effect of the patients.
| size(mm) | mmpb | size(mm) | mmpb |
| 600*600*8 | 1 | 1000*1500*12 | 2 |
| 800*1100*8 | 1 | 2000*1000*12 | 2 |
| 110*120*10 | 1 | 800*1200*15 | 3 |
| 600*900*10 | 1.5 | 900*1200*15 | 3 |
| 800*1020*10 | 1.5 | 1000*1200*15 | 3 |
| 600*900*12 | 2 | 800*1200*20 | 4 |
| 800*1000*12 | 2 | 1000*1200*20 | 4 |
| 800*1200*12 | 2 | 1180*1700*20 | 4 |
| 1000*1000*12 | 2 | 1000*2000*20 | 4 |
| 900*1200*12 | 2 | 1200*2000*20 | 4 |
| 1000*1200*12 | 2 | ... | ... |
In the past 13 years, we have won the trust and praise of customers and successfully realized the transformation from domestic to foreign countries. Professional technology, first-class quality, complete material, perfect surface treatment process.
We support customization, provide free sample service, if necessary, please feel free to send product specification requirements online contact me
